Mercury 3.5 MH 4-Stroke

Condition: New
Model: 1F03201KK
Shaft Length: 20
HP: 3.5

Sale Price: $1,125.00
MSRP: $1,240.00
In Stock

Request More Info Secure Credit Application

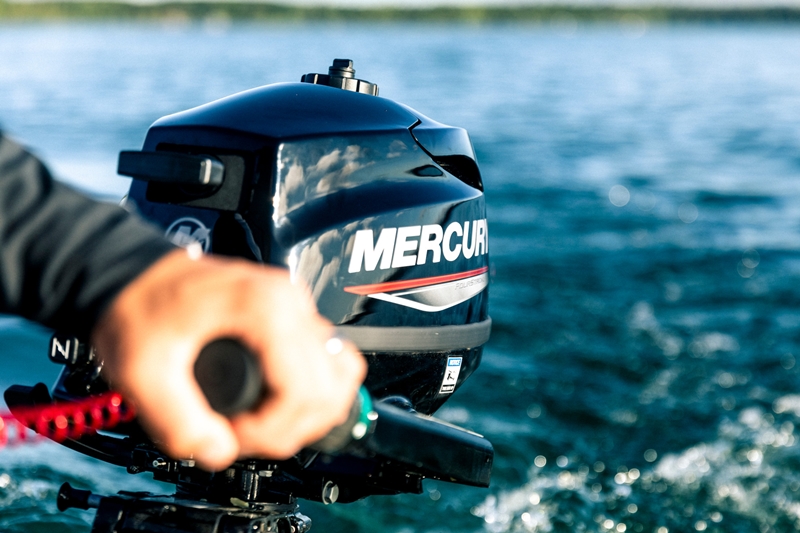

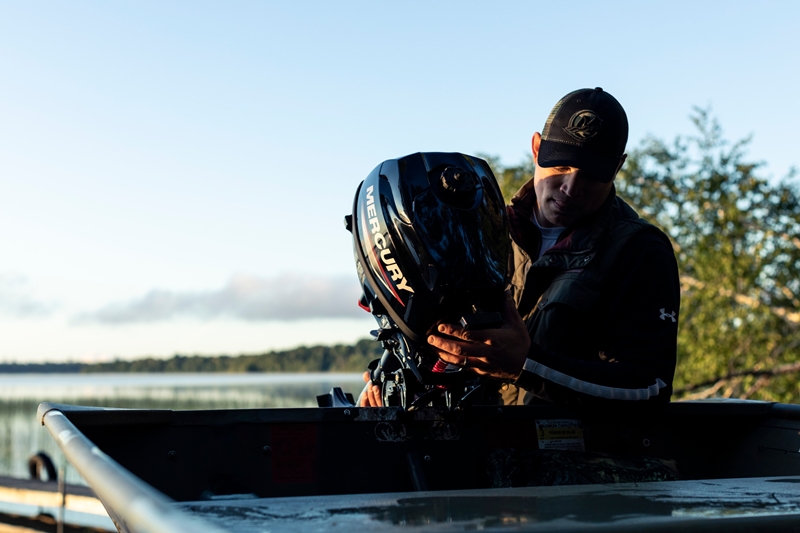

Put amazing power in the palm of your hand. These compact outboard motors take you to the fun, the fish, or whatever floats your boat quickly and reliably. Enjoy quick acceleration to go with exhilarating speed. Easy to install and operate, with reliable starting, low vibration, and instant throttle response. It's worry-free boating at its best.

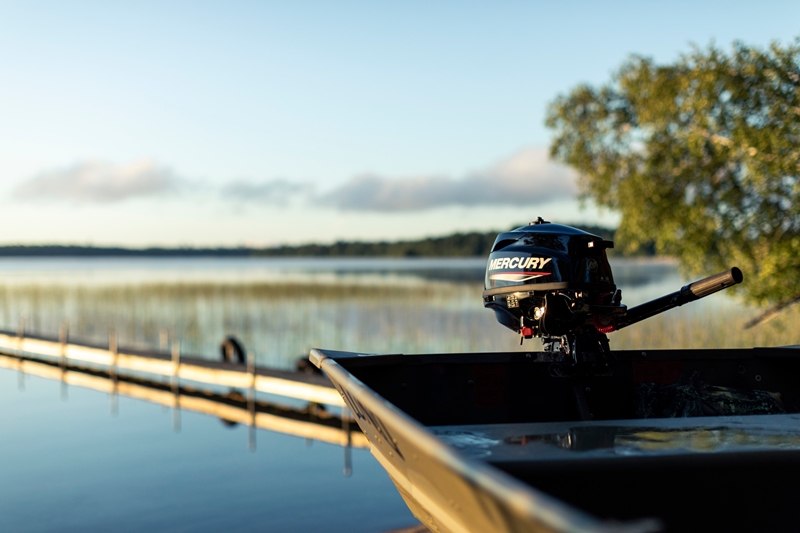

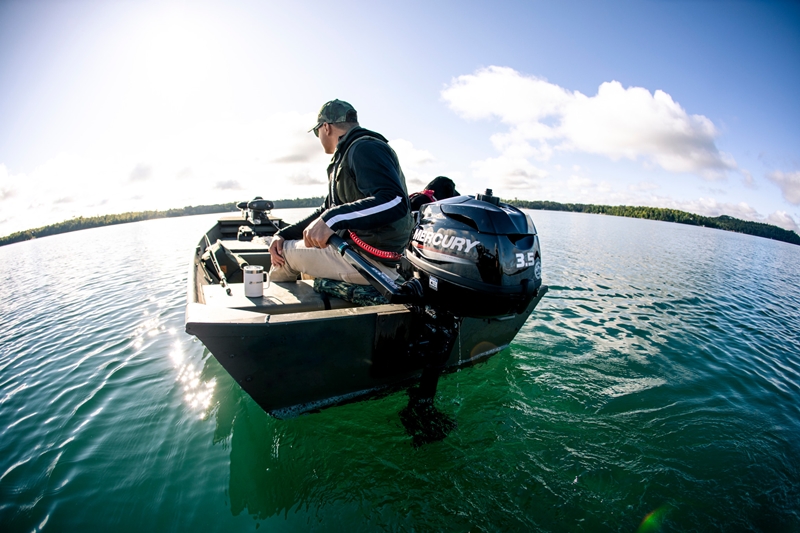

Delivers lightweight, portable power and thrust for exact operation. Perfect for aluminum tiller, inflatable soft hull, jon, utility, and sail boats.

SPECIFICATIONS - 3.5
HP / kW
3.5 / 2.6
Engine type
1 cylinder
Displacement (CID/CC)
5.2 / 85
Full throttle RPM
5000-6000
Fuel induction system
2-valve pushrod (overhead valve)
Recommended fuel
87 octane / up to 10% ethanol
Recommended oil
Mercury FourStroke Oil 10W-30
Engine protection operator warning system
Over-rev
Starting
Manual
Steering
Tiller with 360 turning
Shaft length
15" / 381 mm
20" / 508 mm
Gearcase ratio
2.15:1
Dry weight *Lightest model available
41 lbs / 18 kg
CARB star rating
3
Bore and stroke
2.16 x 1.42" / 55 x 36 mm
Ignition
CDI w/electronic spark advance
Fuel system
Carbureted
Cooling system
Water-cooled with thermostat
Gear shift
F-N
Gearcase options
Standard
Trim system
4 position
Trim positions
4
Exhaust system
Above prop
Shallow water trim range (degrees)
16
Integrated fuel tank (gal / L)
0.3 / 1.1
Color
Phantom Black
