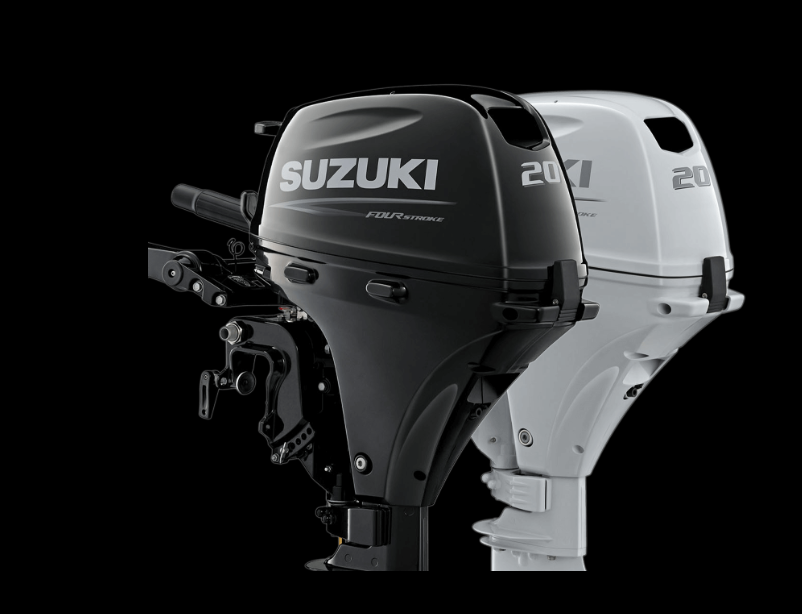

The result of a complete redesign that strove to create the lightest parts possible without compromising integrity, our engineers have successfully crafted an outboard that, even when configured with a power tilt system, still weighs less than any other outboard in the four stroke 14.7kW (20PS) class. Beyond being ultra-light, the DF20A EFI is also among the most technologically advanced portable outboard motors on the market, featuring Suzuki’s proven Lean Burn Control System and Battery-Less Electronic Fuel Injection.
MODEL
DF20A
RECOMMENDED TRANSOM HEIGHT (INCHES)
S: 15" L: 20"
STARTING SYSTEM
S 15" Manual and Electric / L 20" Electric
WEIGHT LBS
S Manual:97 lbs S Electric:105 lbs / L Electric:108 lbs
ENGINE TYPE
SOHC 4-Valve
FUEL DELIVERY SYSTEM
Electronic Fuel Injection with Lean Burn
NO. OF CYLINDERS
2
PISTON DISPLACEMENT INCHES (CC)
20.0 (327)
BORE X STROKE INCHES (MM)
2.38 x 2.24 (60.4 x 57)
MAXIMUM OUTPUT HP
20
OPERATING RANGE (RPM)
5000 - 6000
STEERING
Tiller
CHOKE
N/A - Suzuki EFI
OIL PAN CAPACITY QUARTS (LITER)
1.06 (1.0)
IGNITION SYSTEM
Digital CDI
ALTERNATOR
Manual 12V 6A / Electric 12V 12A
TRIM POSITION
5 Tilt Pin Positions and 2 Shallow Water Drive Settings - Option Power Tilt
GEAR RATIO
2.08:1
STANDARD PROPELLER
3 x 9.25 x 9
PROPELLER SELECTION
7 - 11
